Calculating image textures with GLCM

Alex Zvoleff bio photo By Alex Zvoleff

glcm can calculate image textures from either a matrix or a Raster* object from the raster package. First install the package if it is not yet installed:

if (!(require(glcm))) install.packages("glcm")
## Loading required package: glcm

The below examples use an image included in the glcm package, a red/green/blue cutout of a Landsat 5 image from 1986 from a Tropical Ecology Assessment and Monitoring (TEAM) Network site in Volcan Barva, Costa Rica. The image is included in the glcm package as L5TSR_1986:

library(raster) # needed for plotRGB function
## Loading required package: sp
plotRGB(L5TSR_1986, 3, 2, 1, stretch='lin')

1986 Landsat 5 image from Volcan Barva

To calculate GLCM textures from this image using the default settings, type:

textures <- glcm(raster(L5TSR_1986, layer=3))

where raster(L5TSR_1986, layer=3) selects the third (red) layer. To see the textures that have been calculated by default, type:

## [1] "glcm_mean"          "glcm_variance"      "glcm_homogeneity"
## [4] "glcm_contrast"      "glcm_dissimilarity" "glcm_entropy"
## [7] "glcm_second_moment" "glcm_correlation"

This shows the eight GLCM texture statistics that have been calculated by default. These can all be visualized in R:

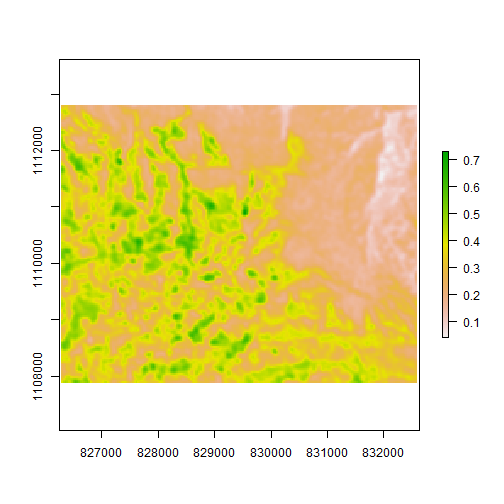

mean of GLCM texture

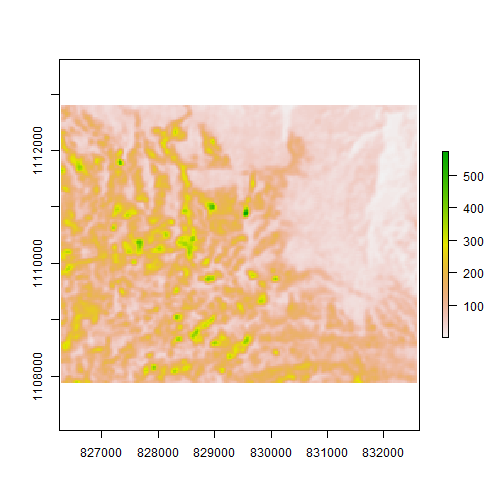

variance of GLCM texture

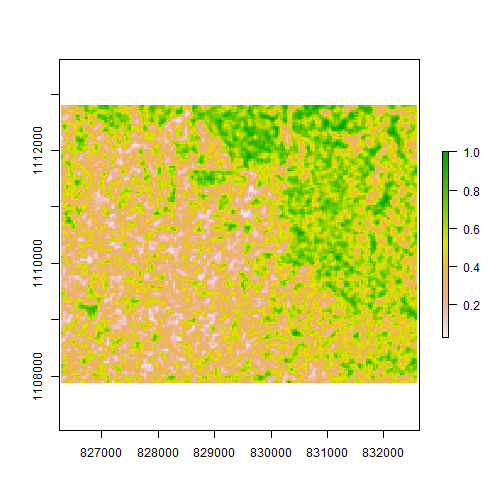

homogeneity of GLCM texture

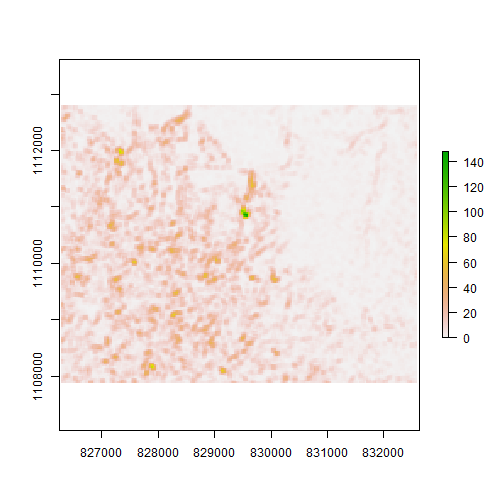

contrast of GLCM texture

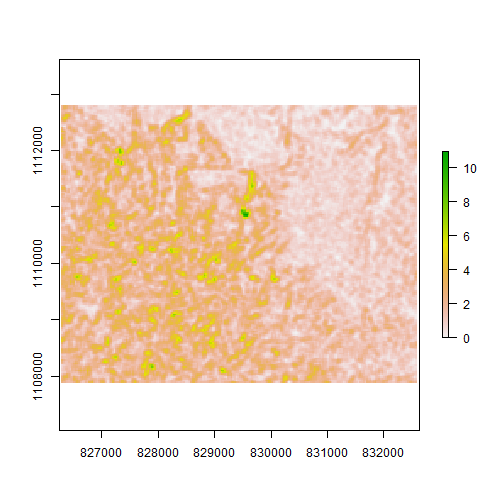

dissimilarity of GLCM texture

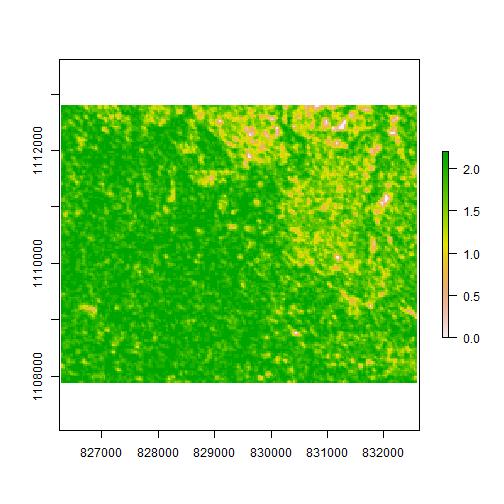

entropy of GLCM texture

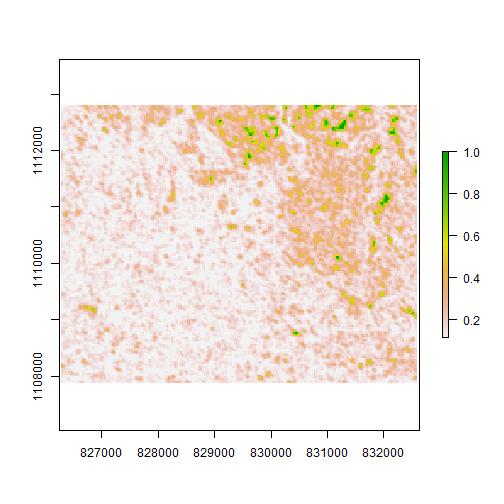

second moment of GLCM texture

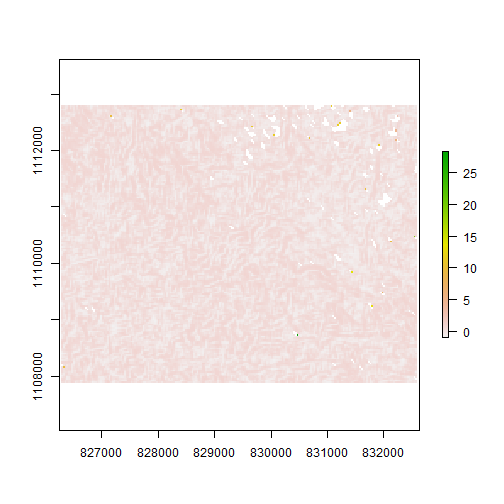

correlation of GLCM texture
